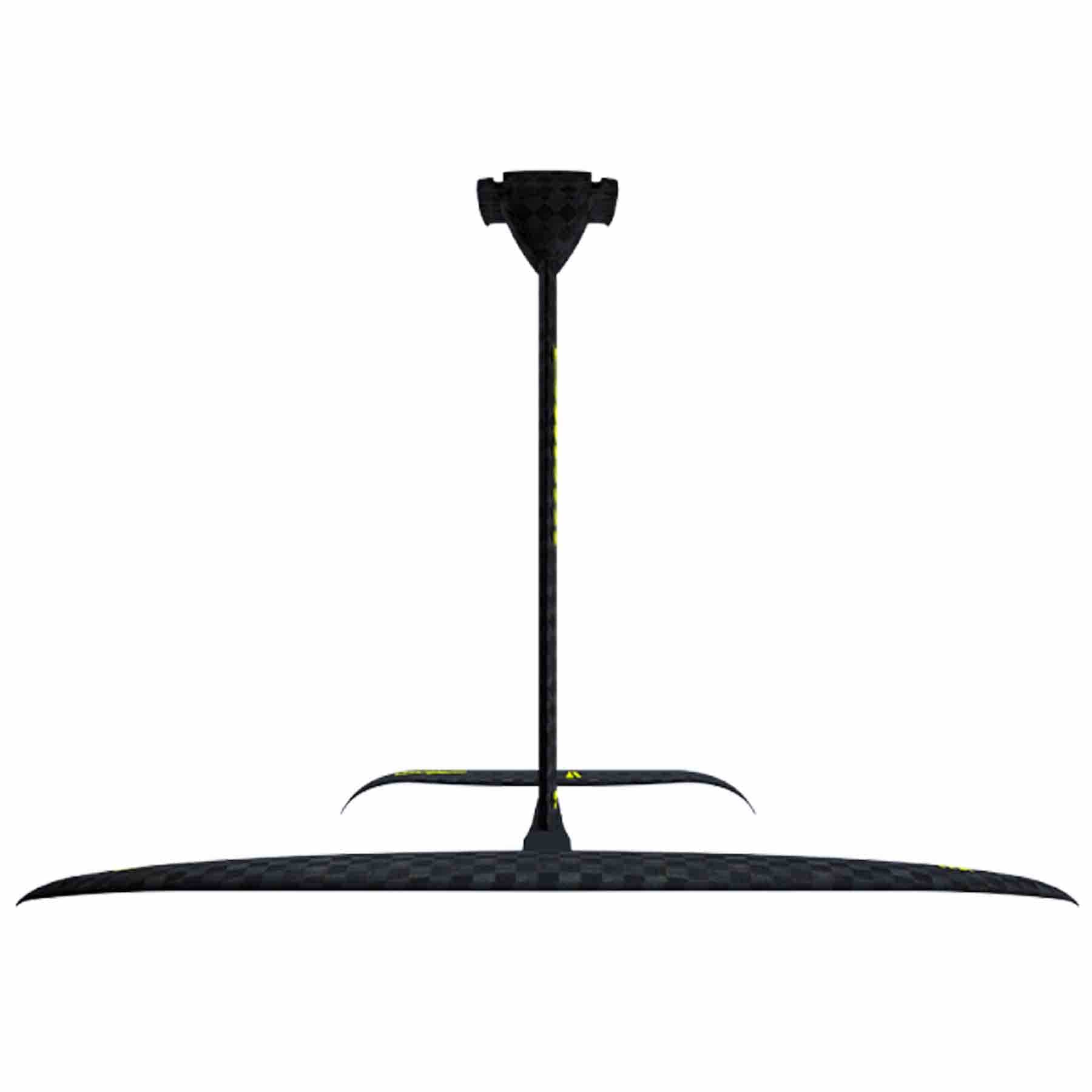

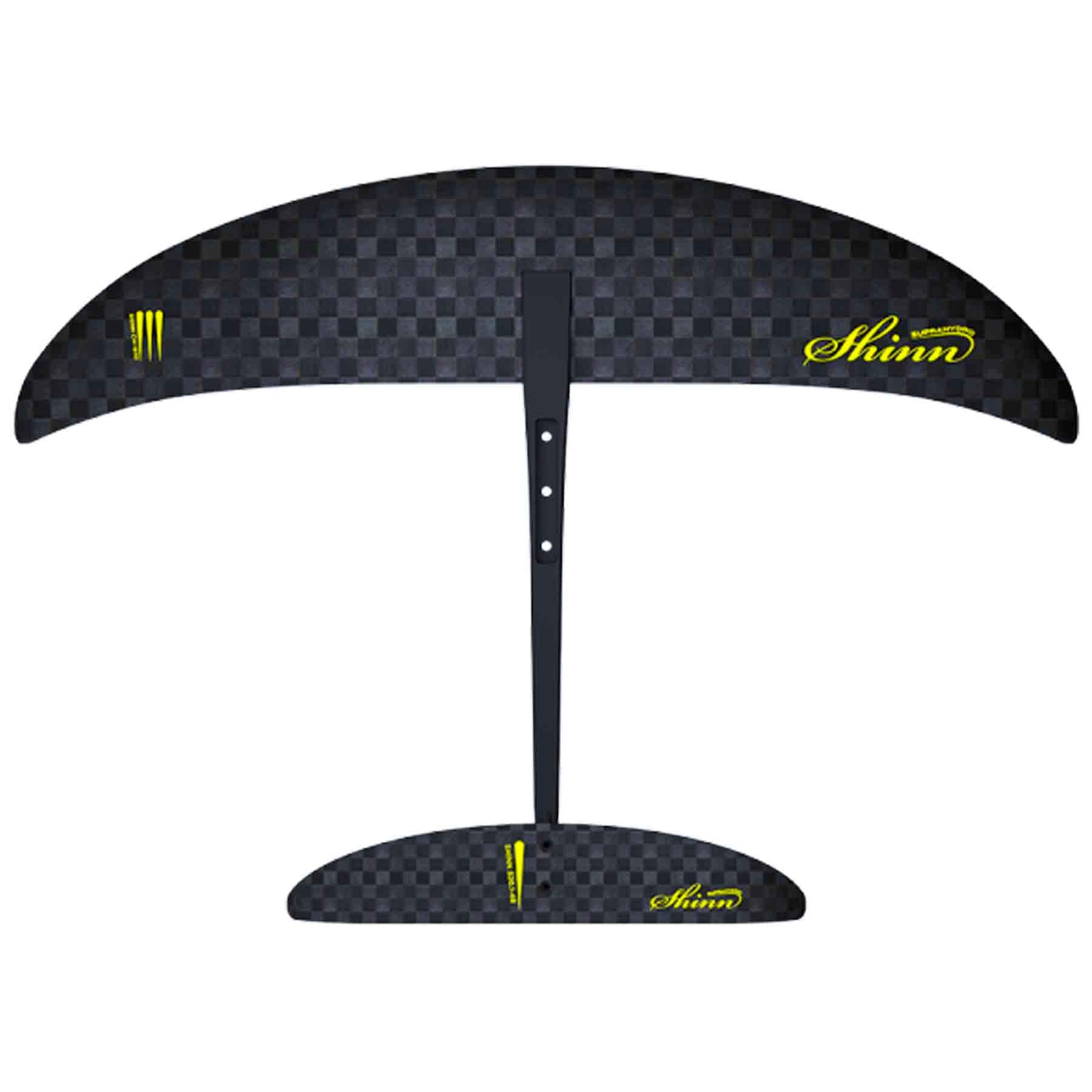

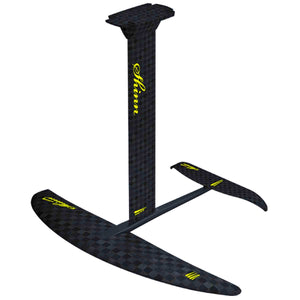

Shinn Suprahydro High Modulus Carbon Foil - Long Fuselage S2AS
Shinn Suprahydro High Modulus Carbon Foil - Long Fuselage S2AS
Shinn Suprahydro High Modulus Carbon Foil - Long Fuselage S2AS

Take a look at the Shinn Suprahydro High Modulus Carbon Foil - Long Fuselage at S2AS!

Lighter, Stiffer and supremely efficient the Suprahydro displays quite probably the best combination of glide and carve on the market, whether it's for surf, wake, wing or SUP foiling! A truly versatile, modern, modular hydrofoil that not only blends but outshines the performance characteristics of both traditional low and high aspect ratio wings.

Shinn's in-depth knowledge and experience in the fields of composite design and manufacturing has created one of, if not the stiffest and lightest foils but it’s their constant dedication to testing in real world conditions that brings a true performance benefit to this technological wonder.

The highest level of technology available, the High Modulus Carbon foil features Shinn's carbon mast, carbon wing and carbon stabiliser combined with a CNC shaped 6061 aircraft grade aluminium fuselage. Utilizing High-Modulus (HM) Spread-Tow carbon built around a precision shaped, CNC cut, high density EPS foam core both the wings and the mast in this set are industry leading light and stiff.

Specifications:

Specifications:

Wings
- 1200 Wing: Nominal Surface Area / 1200cm2, Span / 88cm, Aspect ratio / 6.4, Intended Use / Medium PLUS wind winging (best for jumping), surf medium size waves
- 1400 Wing: Nominal Surface Area / 1400cm2, Span / 95cm, Aspect ratio / 6.4, Intended Use / Medium wind winging, SUP and surf foil all waves
- 1650 Wing: Nominal Surface Area / 1650cm2, Span / 100cm, Aspect ratio / 6.4, Intended Use / Riders <85kg light wind winging, SUP foil, surf foil small waves, pumping
- 1950 Wing: Nominal Surface Area / 1950cm2, Span / 110cm, Aspect ratio / 6.2, Intended Use / Light wind winging, SUP foil small waves, downwinders, pumping
- 2250 Wing: Nominal Surface Area / 2250cm2, Span / 110cm, Aspect ratio / 5.4, Intended Use / Riders >95kg, extreme light wind winging, downwinders

Stabilisers:
- S20.1: Span / 48cm, Recommended rider weight / >85KG
- S20.2: Span / 42cm, Recommended rider weight / <85KG

Fuselage:
- 755 (Long): Choose this fuselage for the ultimate pitch stability when flat water winging and maximum pump for downwinders.
- 580 (Short): Choose this fuselage for the tightest most aggressive turn radius ideal when riding waves of all sizes.

Variable Trim Options:

Shims
- Suprahydro is supplied with +1° (yellow) and -1° (black) shims. These are to trim the lift from the foil.
- +1° Yellow: If you find you are constantly having to force the nose of your board down whilst riding add the +1° YELLOW shim under the stabiliser to balance the foil.
- -1° Black: If you find you are constantly trying to stop the nose of your board touching down whilst riding add the -1° BLACK shim under stabiliser to balance the foil.

Mast Position:
- Suprahydro has a 2-option mounting with 5cm of adjustment for the mast in the fuselage. It is supplied prepared for the mast in the rear most position.
- Riding with the mast in the rear most position (the preferred position for winging) ensures the foil is stable and with positive directional control.
- Riding with the foil in the forward position (the preferred position for SUP and SURF foiling) ensures the most responsive and best carving performance (but the straight line tracking is reduced)

Performance and Technology Highlights:

- Exceedingly low parasitic drag levels for gliding with even the smallest swells
- Full Rail Carve Feeling
- Excellent Low Speed Take-Off with Progressive Speed Lift
- High Stall Angle is ideal for pumping and low speed manoeuvres
- Enhanced Pitch Stability that increases ease of control
- Extreme Rigidity especially between the wing/fuselage connection for a reactive and stable ride
- Ultralight Composite Wing Technology with incredible torsional stiffness

Product Code 1200cmS20HML1

Shinn Suprahydro High Modulus Carbon Foil - Long Fuselage

Regular price£1,954.00
/
Shipping calculated at checkout.
Size

Take a look at the Shinn Suprahydro High Modulus Carbon Foil - Long Fuselage at S2AS!

Lighter, Stiffer and supremely efficient the Suprahydro displays quite probably the best combination of glide and carve on the market, whether it's for surf, wake, wing or SUP foiling! A truly versatile, modern, modular hydrofoil that not only blends but outshines the performance characteristics of both traditional low and high aspect ratio wings.

Shinn's in-depth knowledge and experience in the fields of composite design and manufacturing has created one of, if not the stiffest and lightest foils but it’s their constant dedication to testing in real world conditions that brings a true performance benefit to this technological wonder.

The highest level of technology available, the High Modulus Carbon foil features Shinn's carbon mast, carbon wing and carbon stabiliser combined with a CNC shaped 6061 aircraft grade aluminium fuselage. Utilizing High-Modulus (HM) Spread-Tow carbon built around a precision shaped, CNC cut, high density EPS foam core both the wings and the mast in this set are industry leading light and stiff.

Specifications:

Specifications:

Wings
- 1200 Wing: Nominal Surface Area / 1200cm2, Span / 88cm, Aspect ratio / 6.4, Intended Use / Medium PLUS wind winging (best for jumping), surf medium size waves
- 1400 Wing: Nominal Surface Area / 1400cm2, Span / 95cm, Aspect ratio / 6.4, Intended Use / Medium wind winging, SUP and surf foil all waves
- 1650 Wing: Nominal Surface Area / 1650cm2, Span / 100cm, Aspect ratio / 6.4, Intended Use / Riders <85kg light wind winging, SUP foil, surf foil small waves, pumping
- 1950 Wing: Nominal Surface Area / 1950cm2, Span / 110cm, Aspect ratio / 6.2, Intended Use / Light wind winging, SUP foil small waves, downwinders, pumping
- 2250 Wing: Nominal Surface Area / 2250cm2, Span / 110cm, Aspect ratio / 5.4, Intended Use / Riders >95kg, extreme light wind winging, downwinders

Stabilisers:
- S20.1: Span / 48cm, Recommended rider weight / >85KG
- S20.2: Span / 42cm, Recommended rider weight / <85KG

Fuselage:
- 755 (Long): Choose this fuselage for the ultimate pitch stability when flat water winging and maximum pump for downwinders.
- 580 (Short): Choose this fuselage for the tightest most aggressive turn radius ideal when riding waves of all sizes.

Variable Trim Options:

Shims
- Suprahydro is supplied with +1° (yellow) and -1° (black) shims. These are to trim the lift from the foil.
- +1° Yellow: If you find you are constantly having to force the nose of your board down whilst riding add the +1° YELLOW shim under the stabiliser to balance the foil.
- -1° Black: If you find you are constantly trying to stop the nose of your board touching down whilst riding add the -1° BLACK shim under stabiliser to balance the foil.

Mast Position:
- Suprahydro has a 2-option mounting with 5cm of adjustment for the mast in the fuselage. It is supplied prepared for the mast in the rear most position.
- Riding with the mast in the rear most position (the preferred position for winging) ensures the foil is stable and with positive directional control.
- Riding with the foil in the forward position (the preferred position for SUP and SURF foiling) ensures the most responsive and best carving performance (but the straight line tracking is reduced)

Performance and Technology Highlights:

- Exceedingly low parasitic drag levels for gliding with even the smallest swells
- Full Rail Carve Feeling
- Excellent Low Speed Take-Off with Progressive Speed Lift
- High Stall Angle is ideal for pumping and low speed manoeuvres
- Enhanced Pitch Stability that increases ease of control
- Extreme Rigidity especially between the wing/fuselage connection for a reactive and stable ride
- Ultralight Composite Wing Technology with incredible torsional stiffness
