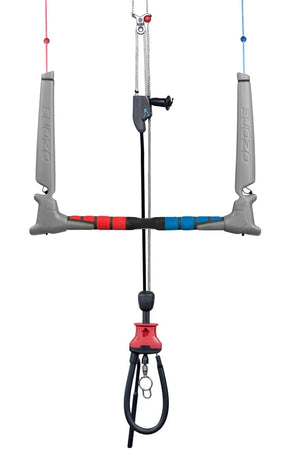

A clean and simple design, featuring an easy-to-use trim system and our innovative Click-In Loop Quick Release.
-
Features:
The Wakestyle Control System is specifically designed for Wakestyle/Freestyle riding.Â
- 38cm and 45cm bar options
- Compact de-power throw
- Large size molded Harness Loop for easy hooking in and out
- 23m lines, the ideal balance between kite reactivity and power development
- 5-Line Conversion Kit included
- Click-In Loop
- Two Release Modes
- Three Loop Size Options
- Spinning Head with Anti-twist Flag Out Line
- Soft Bar Ends with Leader Line Adjustment
- Bio-based Dyneema® Flying Lines
- Stainless Steel Leader Line Pin
- Light Weight Aluminium Centre Piece
- PU Covered De-power Line
- Stainless Steel Trimmer Bracket
- Clamcleat Trimmer
- Re-launch Balls
Exceptional Ozone Factory Construction
World-class construction in our own factory, using the highest quality materials and hand checked Quality Control at every step. The Ozone factory manufactures all our Kites, Wings, Boards, Hydrofoils, Paragliders, Speed Wings and Accessories - the same Quality Control processes are used across all products.
Â

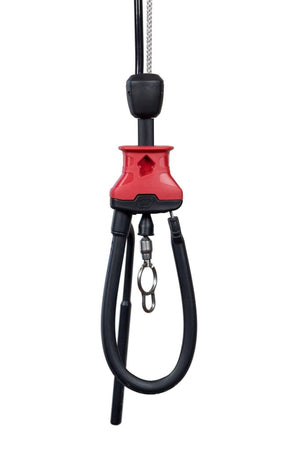

Innovative Click-In Loop
An all-new push-away quick release with an innovative one-step Click-In reload function that is incredibly intuitive. The release handle fits comfortably in the hand, it is quick and easy to activate the release by pushing the handle away. A self-positioning release mechanism locates automatically, ready to be re-loaded by simply ‘clicking’ in the loop. The Click-In Loop is AFNOR NF S52-503 certified.
Two Release Modes
The Click-In Loop offers riders a choice of two release modes, the recommended Standard or the optional Expert mode.
- Standard mode offers 100% flag out in all situations by releasing the Click-In Loop or letting go of the bar when un-hooked.
- Expert mode offers 100% flag out only when the Click-In Loop is released whilst hooked in, allowing riders practicing handle passes to miss the bar without releasing the kite to flag out (not recommended).Â
Large size Click-In Loop
The Large size is designed for unhooking or riders with a longer arm reach.Â
Three Loop Size Options
Small, Medium and Large size harness loops are available for the Click-In Loop. Choose the Small if you ride hooked in only, have a shorter arm reach or prefer the bar closer to your body. The Medium size is perfect for most riders. The Large size is designed for unhooking or riders with a longer arm reach.
Spinning Head with Anti-twist Flag Out Line
Our custom Stainless Steel Swivel Ring locates into the Click-In Loops rotating internal core. When manually turning the Spinning Head to un-twist front lines, the Flag Out Line rotates in unison with the core keeping all lines twist free.

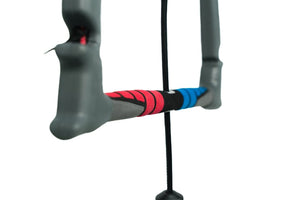

Soft Bar Ends with Leader Line Adjustment
Soft bar ends for comfort and are less likely to damage lightly constructed boards. The leader lines are adjustable via knots inside the float, simply pull out from the opening to access and adjust to your preference.Â
Bio Based Dyneema® Modular Flying Lines
Colour coded 500kg front / 300kg back lines are precision cut, pre-stretched, spliced and sewn in our own production facility to guarantee accuracy. We use the highest quality Bio-based Dyneema® - this material has the same performance as conventional Dyneema® with a carbon footprint that is 90% lower than generic HMPE fiber. Our modular design makes adding or removing extensions quick and easy via removable pigtail end connectors.Â
Ergonomic EVA Grip
3D pressed EVA grip with ergonomic shaping provides the ultimate bar grip.

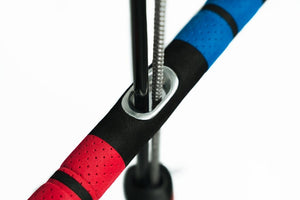

Stainless Steel Leader Line Pin
Superior strength is achieved with a Stainless pin running through the bar. This creates an ultra strong and direct connection between the control bar to flying lines.
Light Weight Aluminium Centre Piece
CNC cut Aluminium centre piece reduces weight. The low friction design reduces wear.
PU Covered De-power Line
The tough PU covered de-power line significantly reduces wear when sheeting in and out.
Stainless Steel Trimmer Bracket
The smooth running trimmer bracket prevents trim line wear.
Clamcleat Trimmer
Anodized low abrasion Clamcleat trimmer with custom designed cleat base.
Re-launch Balls
Fixed to the leader lines to pull when re-launching the kite.
-

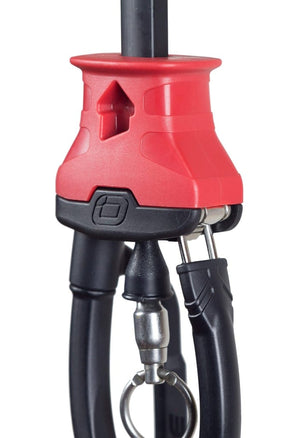

Click-In Loop
Push-away quick release with an innovative one-step Click-In reload function that is incredibly intuitive. The release handle fits comfortably in the hand, it is quick and easy to activate the release by pushing the handle away. A self-positioning release mechanism locates automatically, ready to be re-loaded by simply ‘clicking’ in the loop. The Click-In Loop is AFNOR NF S52-503 certified.
-
Bio-based Dyneema® Modular Flying Lines
Colour coded 500kg front / 300kg back lines are precision cut, pre-stretched, spliced and sewn in our own production facility to guarantee accuracy. We use the highest quality Bio-based Dyneema® – this material has the same performance as conventional Dyneema® with a carbon footprint that is 90% lower than generic HMPE fiber.
-
Modular Design
Our modular design makes adding or removing extensions quick and easy via removable pigtail end connectors.
-
Ergonomic EVA Grip
3D pressed EVA with ergonomic shaping and a lightly sanded finish provide the ultimate bar grip. It is colour coded with the leader lines and flying lines for an added visual safety feature.
-
Design Inspiration
What’s the first thing you do when you get in a car? You click in your seatbelt, hearing that ‘click’ sound makes you feel secure that you are safely buckled up, and you know instinctively how to release it.  The design of our innovative quick release system, the Click-In Loop, was inspired by the same principle. In the same way fastening your seatbelt has become a natural action when getting into a car, riders should activate and reload their release systems before and after every use. Although this important safety check is often overlooked, checking your release before each session will ensure it is functioning properly. We developed the Click-In function to be simple and intuitive, so activating and reloading will become second nature.
-
Important Notes:
Below the Bar Release (Recommended Mode)
All riders should attach their Kite Leash to the Flag Out System. This is the small eyelet on the Stainless Steel Swivel Ring.
When the release is activated, the kite will flag out and fall to the water/ground.
-
Advanced Riders
(Use at your own risk, not recommended)Â
Riders performing unhooked tricks or who are more confident and have spent many hours Kiting can attach in Expert mode, where the loop part runs through the large eye of the steel ring. When letting go of the bar in Expert mode (without activating the release e.g. missed handle pass) the kite will depower but WILL NOT flag out.
Be aware in this situation, the Quick Release will be out of reach and can therefore not be released. When hooked in and activating the Quick Release the steel ring automatically slips off and the kite will flag out.
-
Keep it Clean:
In all situations make sure that all lines are clear of all working release systems and the kite leash is connected in the right way.
Always clean your control system with fresh water after every session, and reload/release the Click-In Loop to check the system is functioning correctly. Store your control system with the Click-In Loop release open. Reload the next time you set up your kite.
